Standard 2-Cut Drill Bits for SDS-PLUS machines
Standard 2-Cut Drill Bits for SDS-PLUS machines
Standard 2-Cut Drill Bits for SDS-PLUS machines
Standard 2-Cut Drill Bits for SDS-PLUS machines

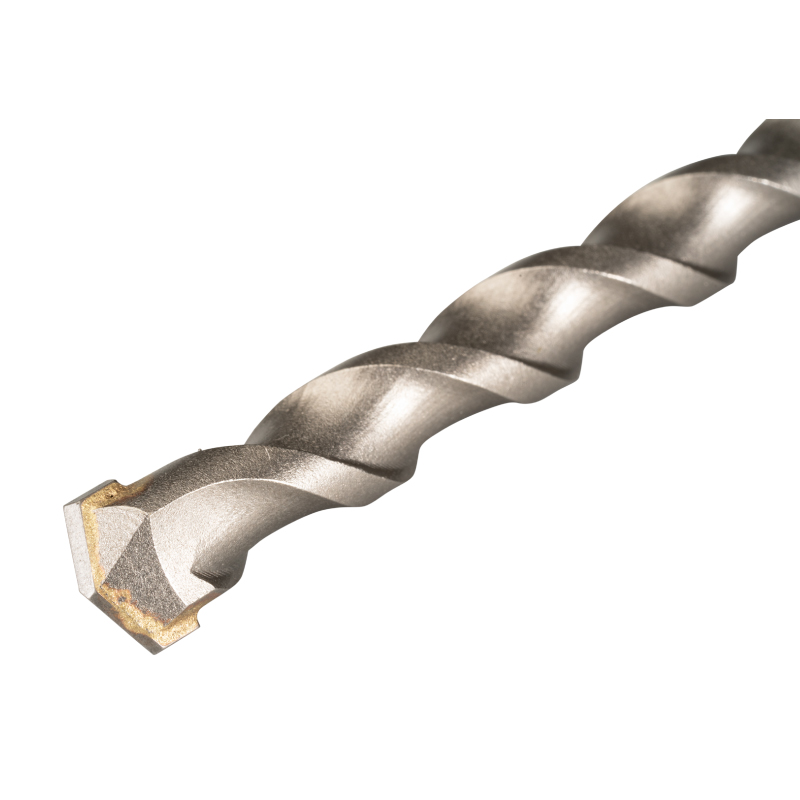

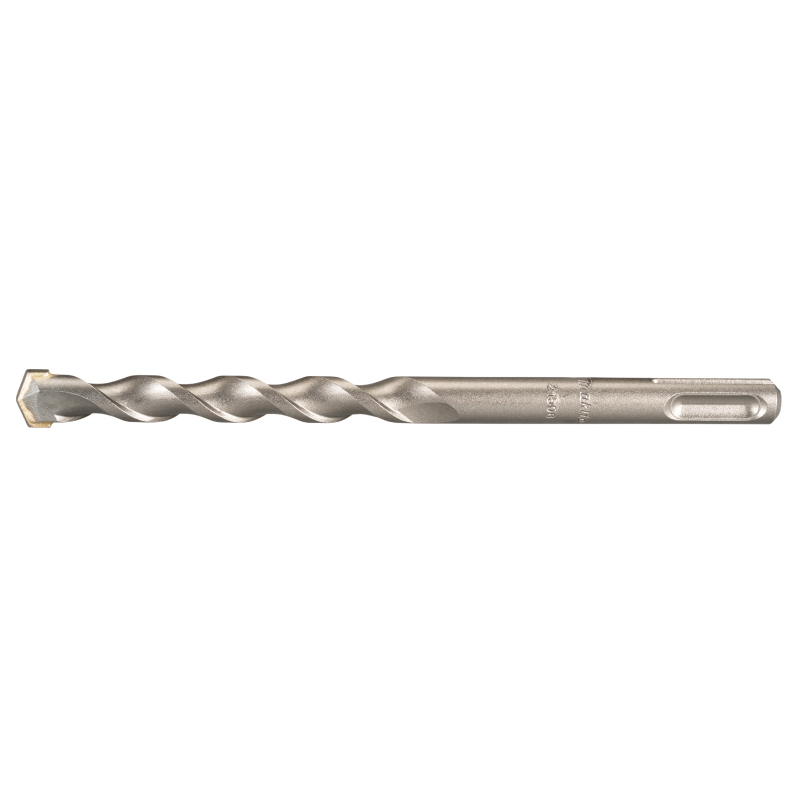

Drill bits with SDS-PLUS shank are designed for drilling into concrete and masonry. These bits come with a standard 2 flutes and 2 cutter tip. A wide range of sizes helps the user to find the right bit for the job.
Technical specifications
| Part No. | Bit dia. Mm | Length mm | Working Length mm | Sales pkg q'ty |
|---|---|---|---|---|
| D-00016 | 4 | 110 | 50 | 1 |
| D-66612 | 4 | 160 | 100 | 1 |
| D-00022 | 5 | 110 | 50 | 1 |
| D-00038 | 5 | 160 | 100 | 1 |
| D-66628 | 5 | 210 | 150 | 1 |
| D-00044 | 5.5 | 110 | 50 | 1 |
| D-16106 | 5.5 | 160 | 100 | 1 |
| D-00050 | 6 | 110 | 50 | 1 |
| D-00066 | 6 | 160 | 100 | 1 |
| D-00072 | 6 | 210 | 150 | 1 |
| D-00088 | 6.5 | 110 | 50 | 1 |
| D-00094 | 6.5 | 160 | 100 | 1 |
| D-45082 | 6.5 | 210 | 150 | 1 |
| D-00103 | 7 | 110 | 50 | 1 |
| D-00119 | 7 | 160 | 100 | 1 |
| D-25600 | 7 | 210 | 150 | 1 |
| D-00125 | 8 | 110 | 50 | 1 |
| D-00131 | 8 | 160 | 100 | 1 |
| D-00147 | 8 | 210 | 150 | 1 |
| D-08040 | 9 | 110 | 50 | 1 |
| D-08056 | 9 | 160 | 100 | 1 |
| D-00169 | 9 | 210 | 150 | 1 |
| D-09117 | 10 | 110 | 50 | 1 |
| D-00175 | 10 | 160 | 100 | 1 |
| D-00181 | 10 | 210 | 150 | 1 |
| D-00197 | 10 | 260 | 200 | 1 |
| D-00206 | 10 | 310 | 250 | 1 |
| D-00212 | 11 | 160 | 100 | 1 |
| D-66662 | 11 | 210 | 150 | 1 |
| D-66678 | 11 | 260 | 200 | 1 |
| D-00228 | 12 | 160 | 100 | 1 |
| D-00234 | 12 | 210 | 150 | 1 |
| D-00240 | 12 | 260 | 200 | 1 |
| D-66684 | 12 | 310 | 250 | 1 |
| D-16112 | 12 | 350 | 290 | 1 |
| D-16271 | 12 | 460 | 400 | 1 |
| D-14102 | 12.5 | 160 | 100 | 1 |
| D-03280 | 12.7 | 160 | 100 | 1 |
| D-03296 | 12.7 | 350 | 290 | 1 |
| D-00256 | 13 | 160 | 100 | 1 |
| D-66690 | 13 | 210 | 150 | 1 |
| D-25622 | 13 | 260 | 200 | 1 |
| D-16128 | 13 | 350 | 290 | 1 |
| D-00262 | 14 | 160 | 100 | 1 |
| D-21331 | 14 | 210 | 150 | 1 |
| D-00278 | 14 | 260 | 200 | 1 |
| D-66709 | 14 | 310 | 250 | 1 |
| D-16134 | 14 | 350 | 290 | 1 |
| D-17544 | 14 | 460 | 400 | 1 |
| D-00284 | 15 | 160 | 100 | 1 |
| D-25638 | 15 | 260 | 200 | 1 |
| D-16140 | 15 | 350 | 290 | 1 |
| D-17550 | 15 | 490 | 400 | 1 |
| D-03981 | 16 | 160 | 100 | 1 |
| D-00290 | 16 | 210 | 150 | 1 |
| D-16156 | 16 | 260 | 200 | 1 |
| D-00309 | 16 | 310 | 250 | 1 |
| D-16162 | 16 | 350 | 290 | 1 |
| D-16178 | 17 | 160 | 100 | 1 |
| D-00315 | 17 | 210 | 150 | 1 |
| D-16190 | 17 | 250 | 290 | 1 |
| D-00337 | 18 | 300 | 240 | 1 |
| D-00343 | 19 | 210 | 150 | 1 |
| D-16243 | 19 | 350 | 290 | 1 |
| D-00359 | 20 | 210 | 150 | 1 |
| D-16259 | 20 | 260 | 200 | 1 |
| D-00365 | 20 | 310 | 250 | 1 |
| D-16265 | 20 | 350 | 290 | 1 |
| D-15235 | 20 | 460 | 400 | 1 |
| D-00371 | 22 | 260 | 200 | 1 |
| D-08062 | 22 | 310 | 250 | 1 |
| D-15241 | 22 | 460 | 400 | 1 |
| D-00387 | 25 | 260 | 200 | 1 |
| D-03311 | 25 | 350 | 290 | 1 |
| D-00393 | 26 | 260 | 200 | 1 |
| D-08078 | 26 | 310 | 250 | 1 |
| D-16318 | 28 | 460 | 400 | 1 |
| D-17572 | 30 | 460 | 400 | 1 |
