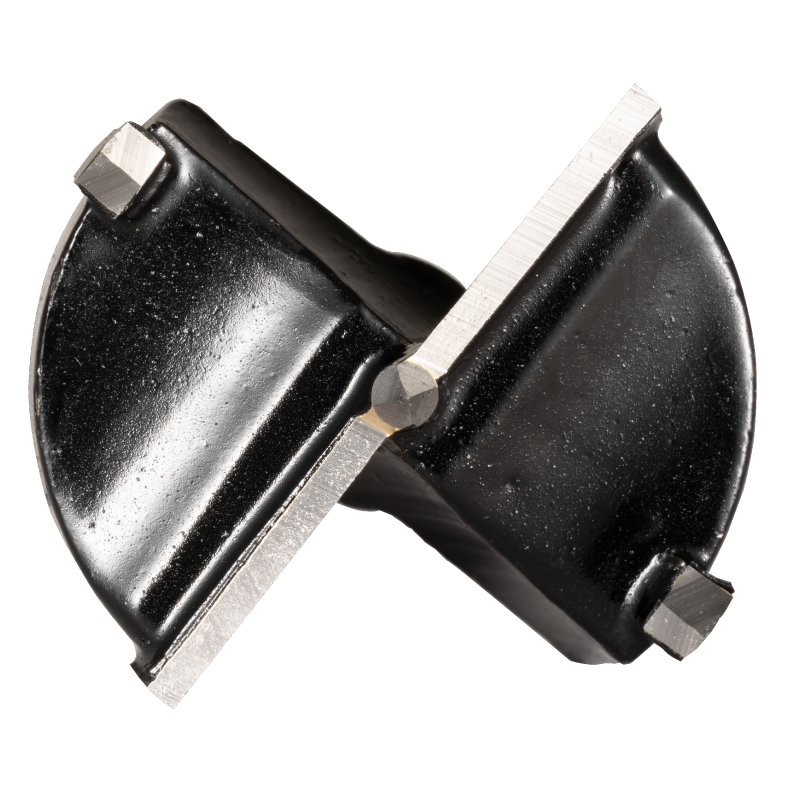

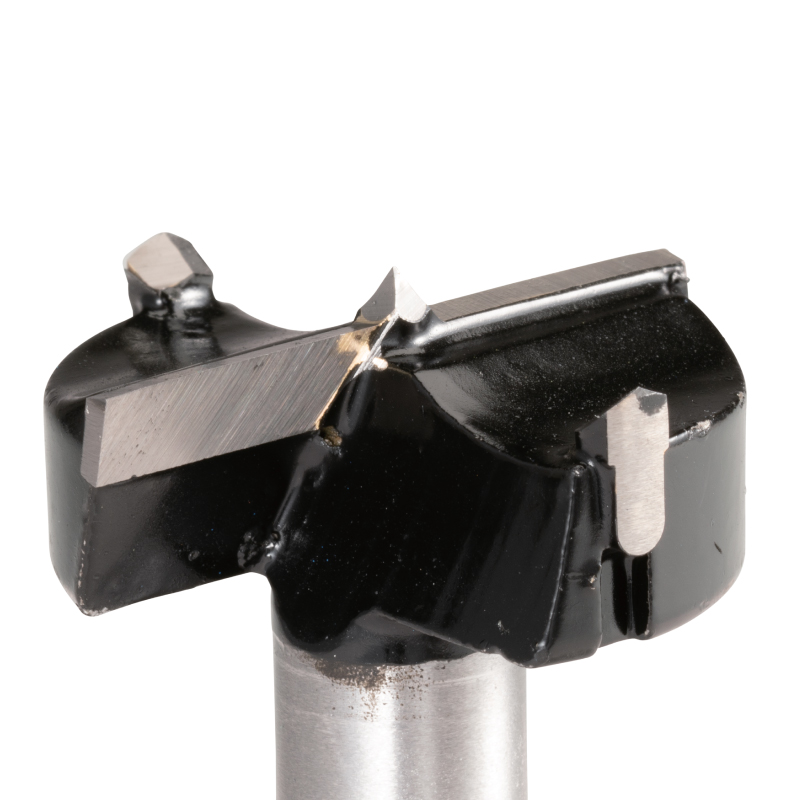

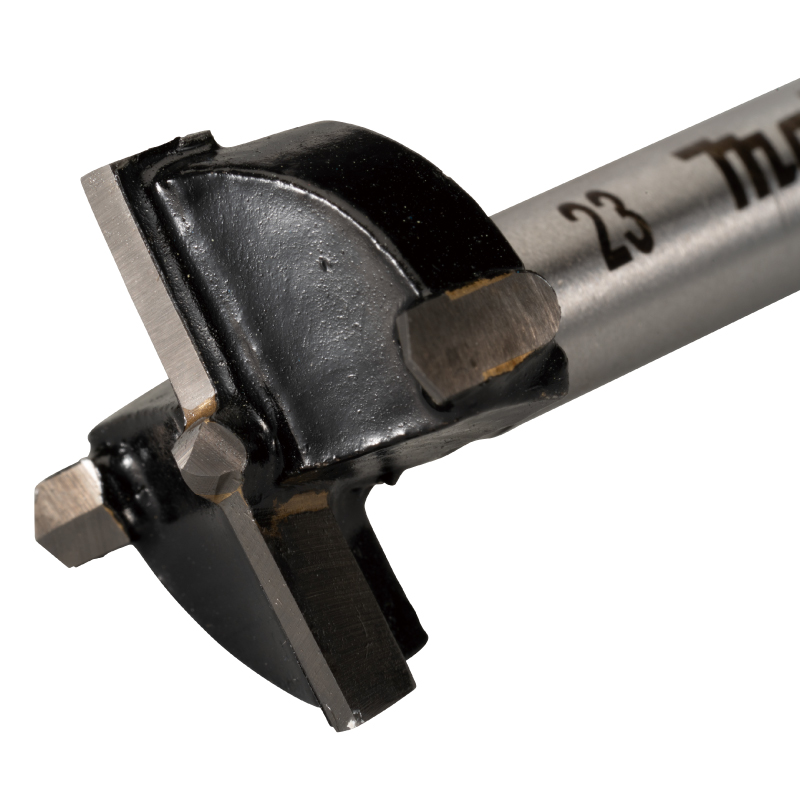

Wood TCT hinge cutting bit
Wood TCT hinge cutting bit
Wood TCT hinge cutting bit
Wood TCT hinge cutting bit

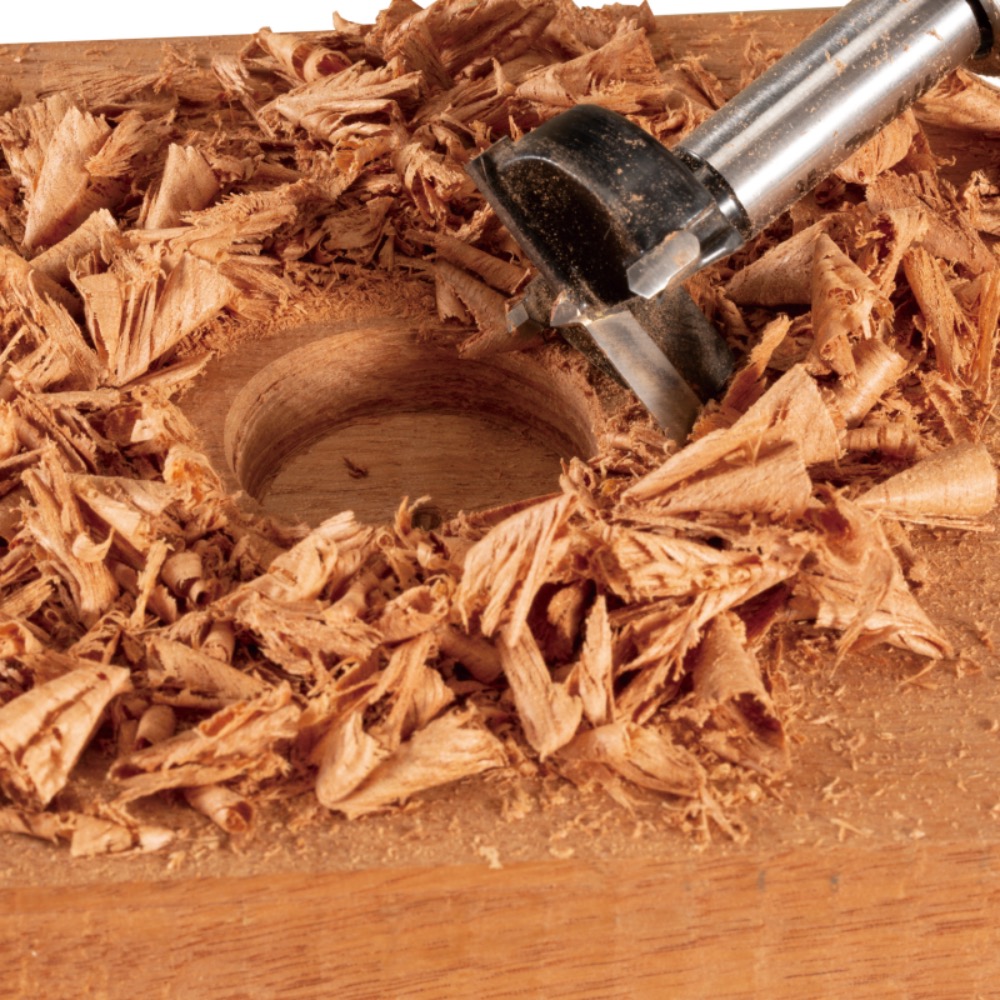

Carbide tipped for increased efficiency Suitable for drilling of blind holes or penetrating holes of medium or large diameter Short outstanding tip locates the drilling hole and make a blind hole for hinge
Technical specifications
| Part No. | Bit dia. mm | Length mm | Sales pkg q'ty |
|---|---|---|---|
| D-71093 | 15 | 77 | 1 |
| D-74681 | 16 | 77 | 1 |
| D-74697 | 18 | 77 | 1 |
| D-71102 | 19 | 77 | 1 |
| D-71118 | 20 | 77 | 1 |
| D-74706 | 22 | 77 | 1 |
| D-74712 | 23 | 77 | 1 |
| D-71124 | 25 | 77 | 1 |
| D-71130 | 26 | 77 | 1 |
| D-71146 | 30 | 77 | 1 |
| D-71152 | 32 | 77 | 1 |
| D-71168 | 35 | 77 | 1 |
