Metal drill bit HSS-GS
Metal drill bit HSS-GS
Metal drill bit HSS-GS
Metal drill bit HSS-GS

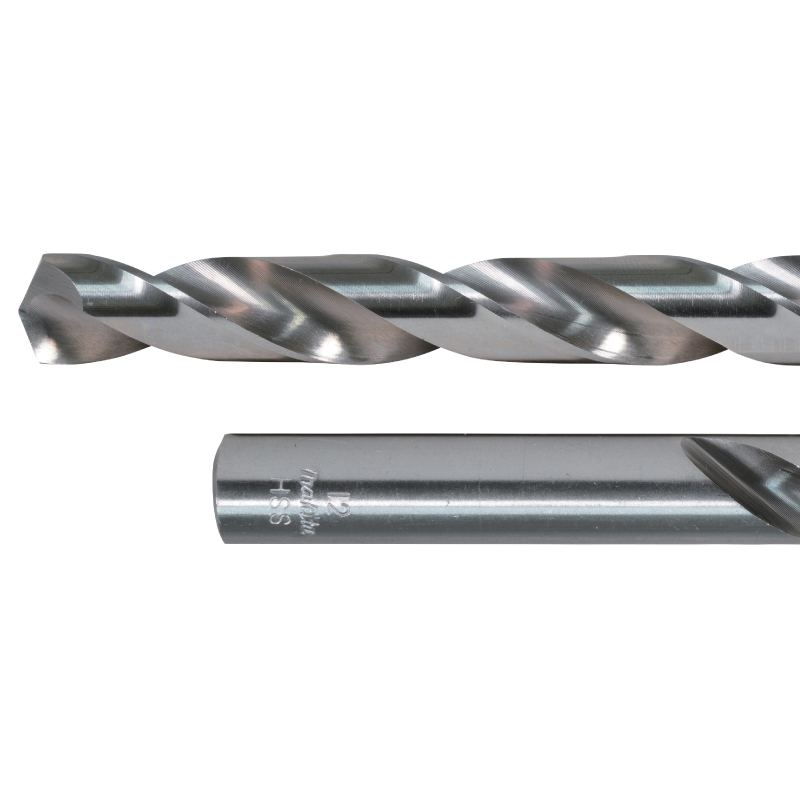

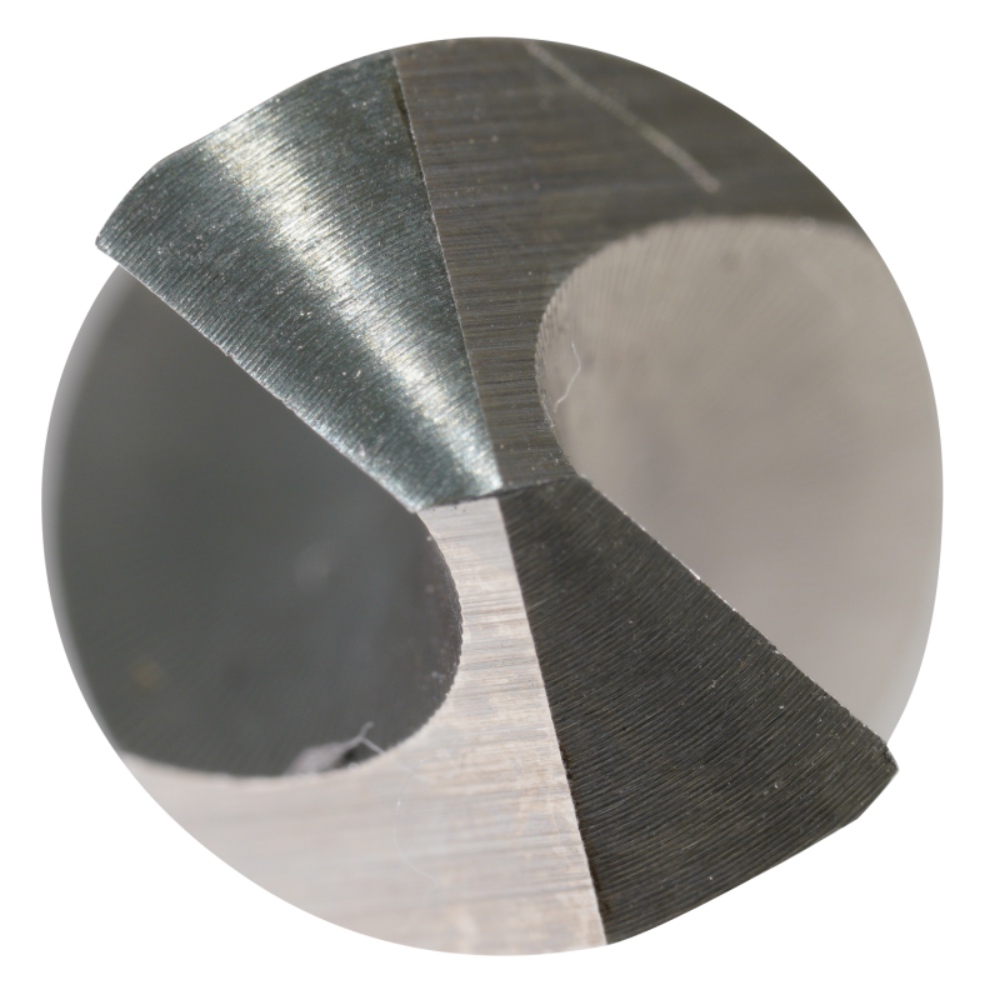

HSS-G drill bits with bright finish for metal drilling. The shape of the grooves are ground from the block, giving the bit a smooth finish; the tip has an 135° chisel edge with a cylindrical shank. A wide range of sizes helps the user to find the correct bit for the job.
Technical specifications
| Part No. | Bit dia. mm | Working Length mm | Length mm | Sales pkg q'ty |
|---|---|---|---|---|
| D-77702 | 2 | 49 | 24 | 2 |
| D-77718 | 2.5 | 57 | 30 | 2 |
| D-77724 | 3 | 61 | 33 | 2 |
| D-77752 | 3.5 | 70 | 39 | 2 |
| D-77768 | 4 | 75 | 43 | 2 |
| D-77780 | 4.5 | 80 | 47 | 1 |
| D-77796 | 5 | 86 | 52 | 1 |
| D-77805 | 5.5 | 93 | 57 | 1 |
| D-77811 | 6 | 93 | 57 | 1 |
| D-77827 | 6.5 | 101 | 63 | 1 |
| D-77833 | 7 | 109 | 69 | 1 |
| D-77849 | 7.5 | 109 | 69 | 1 |
| D-77855 | 8 | 117 | 75 | 1 |
| D-77861 | 8.5 | 117 | 75 | 1 |
| D-77877 | 9 | 125 | 81 | 1 |
| D-77883 | 9.5 | 125 | 81 | 1 |
| D-77899 | 10 | 133 | 87 | 1 |
| D-77908 | 10.5 | 133 | 87 | 1 |
| D-77914 | 11 | 142 | 94 | 1 |
| D-77920 | 11.5 | 142 | 94 | 1 |
| D-77936 | 12 | 151 | 101 | 1 |
| D-77942 | 12.5 | 151 | 101 | 1 |
| D-77958 | 13 | 151 | 101 | 1 |
| D-77964 | 14 | 160 | 108 | 1 |
| D-77970 | 15 | 169 | 114 | 1 |
| D-77986 | 16 | 178 | 120 | 1 |
