Metal drill HSS-TiN
Metal drill HSS-TiN

Metal drill HSS-TiN

Metal drill HSS-TiN

  

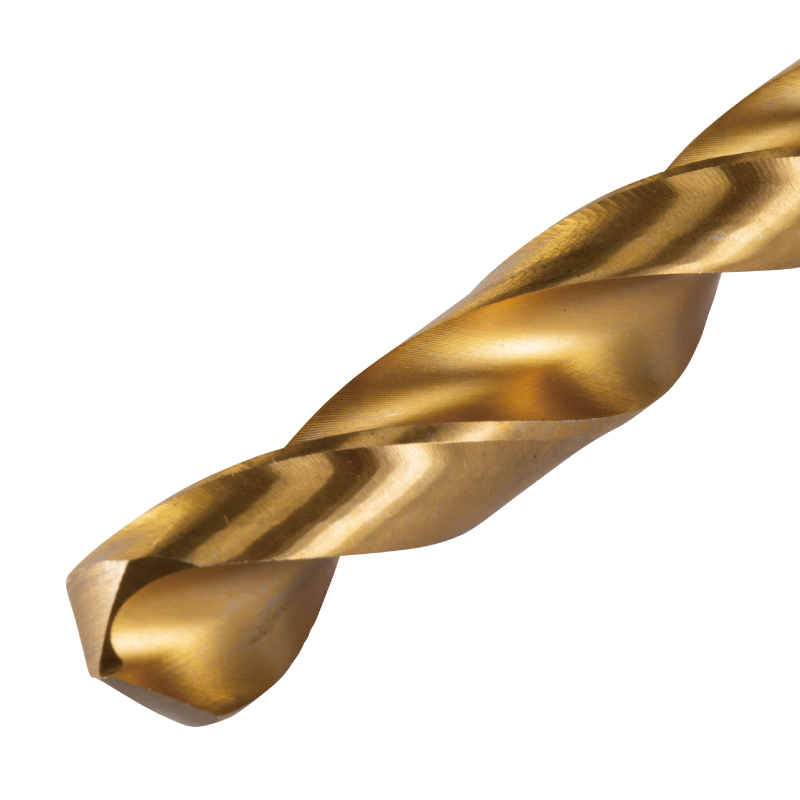

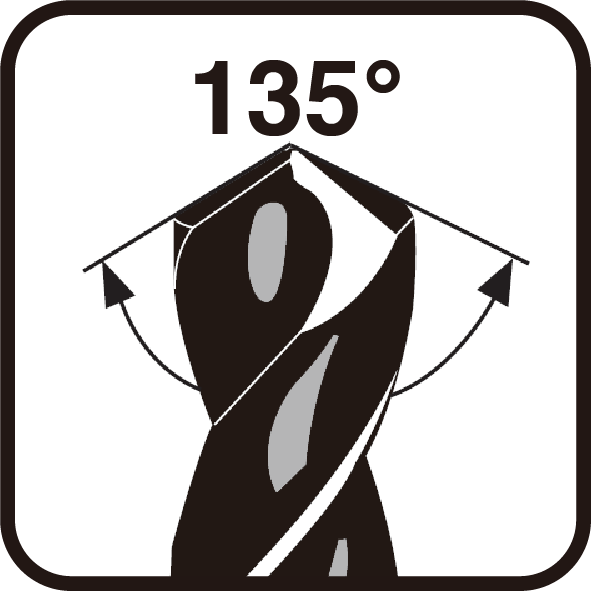

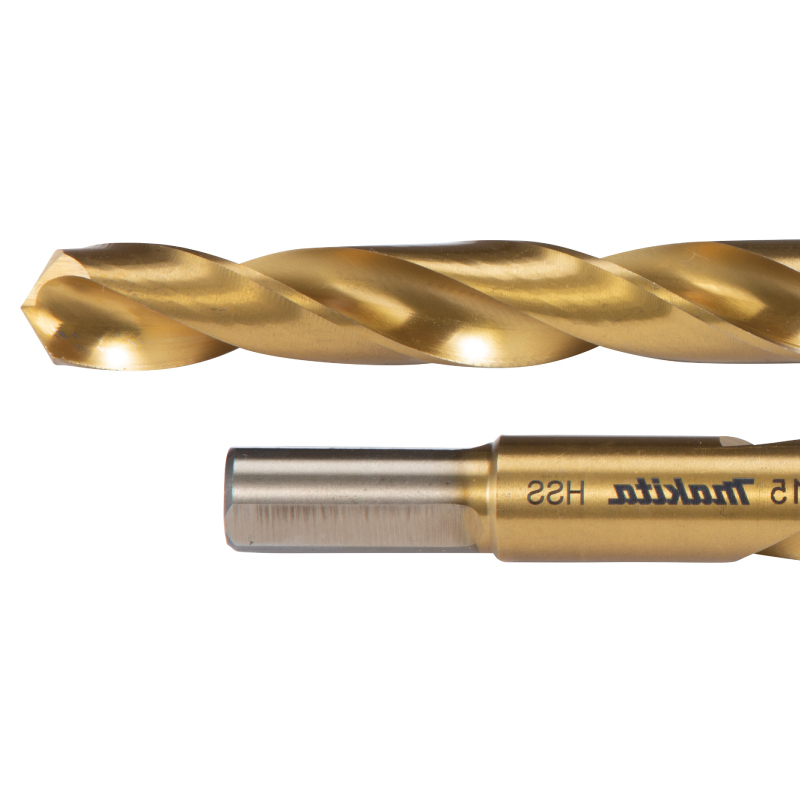

The Makita round Shank Titanium Nitride Bits are designed for use drilling holes with impact drivers or driver-drills. These bits feature a 135° split point for faster more accurate starts in a variety of material. Each bit is made from high speed steel and coated with titanium nitritde for added durability and a long life - Titanium Nitride (TiN) coating offers the lowest possible level of friction and minimal wear - High Speed Steel (HSS) construction for added durability and long life - The tip is 135°Split point leading to anti-slip when drill on curve surface - For drilling holes in ferrous metal, wood, plastic, non-ferrous metal, cast iron and stainless steel


Technical specifications

Part No. Bit dia. mm Working Length mm Length mm Sales pkg q,ty
D-64010 1.5 18 40 2
D-64026 2 24 49 2
D-64032 2.5 30 57 2
D-64048 3 33 61 2
D-64054 3.5 39 70 2
D-64060 4 43 75 2
D-64076 4.5 47 80 1
D-64082 5 52 86 1
D-64098 5.5 57 93 1
D-64107 6 57 93 1
D-64113 6.5 63 101 1
D-64129 7 69 109 1
D-64135 7.5 69 109 1
D-64141 8 75 117 1
D-64157 8.5 75 117 1
D-64163 9 81 125 1
D-64179 9.5 81 125 1
D-64185 10 87 133 1
D-64191 10.5 87 133 1
D-64200 11 94 142 1
D-64216 11.5 94 142 1
D-64222 12 101 151 1
D-64238 12.5 101 151 1
D-64244 13 101 151 1
D-65741 14 108 160 1
D-65757 15 114 169 1
D-65763 16 120 178 1
D-65779 17 125 184 1
D-65785 18 130 191 1
D-65791 19 135 198 1
D-65800 20 140 205 1
