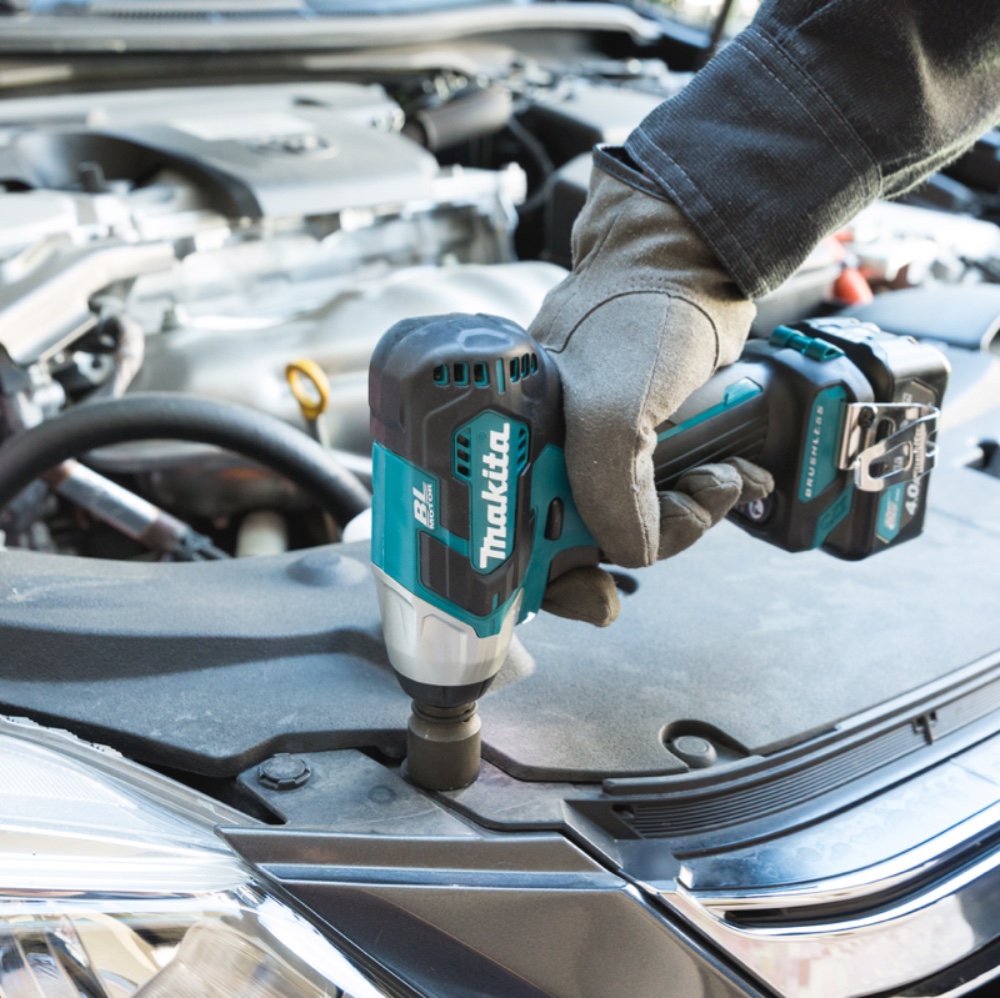

TW160D
Cordless Impact Wrench
12V Max 3/8" (9.5 mm) 160 N·m Impact Wrench
Other Products
๐ Delivers 160 N·m (120 ft.lbs.) of Max Torque in an Ultra Compact Size ๐ Reverse Rotation Auto-Stop Mode stops in 0.2 seconds after the bolt/nut loosened enough ๐ BL motor delivers 2,400 max RPM, 3,600 max IPM and 160 N·m of max torque ๐ BL motor is electronically controlled to optimize battery energy use for longer run time per charge ๐ BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life ๐ BL motor efficiently uses energy to match torque and RPM to the changing demands of the application ๐ Variable 2-speed (0-1,300/0-2,400 RPM & 0-2,000/0-3,600 IPM) provides fastening control for a wide range of applications ๐ Ultra compact design at only 144 mm (5-5/8") long and lightweight for reduced operator fatigue
Standard Equipments : Belt Clip Any accessories shown are not necessarily supplied as standard equipment.
Technical specifications
| Fastening Capacities | Standard Bolt : M8 - M16 (5/16 - 5/8") |
|---|---|
| High Strength Bolt : M6 - M12 (1/4 - 1/2") | |
| Square Drive | 9.5 mm (3/8") |
| No Load Speed (RPM) | Hard / Soft : 0 - 2,400 / 0 - 1,300 |
| Impacts per minute (IPM) | Hard / Soft : 0 - 3,600 / 0 - 2,000 |
| Max Fastening Torque | 160 N·m (120 ft.lbs.) |
| Dimensions (L x W x H) | w/ BL1016/BL1021B : 144 x 66 x 213 mm |
| Net weight | 1.0 - 1.2 kg (2.2 - 2.6 lbs.) |
| CXT (Compact Extreme Technology) | ✓ |
| BL Motor | ✓ |
| Variable Speed | ✓ |
| Brake | ✓ |
| Reversing | ✓ |
| Electronic 2-Speed | ✓ |
| Built-in Job Light | ✓ |
