DSP601
165 mm (6-1/2") Plunge Cut Saw AWS
18V X2 (36V) Plunge Cut Saw (6-1/2")
Other Products

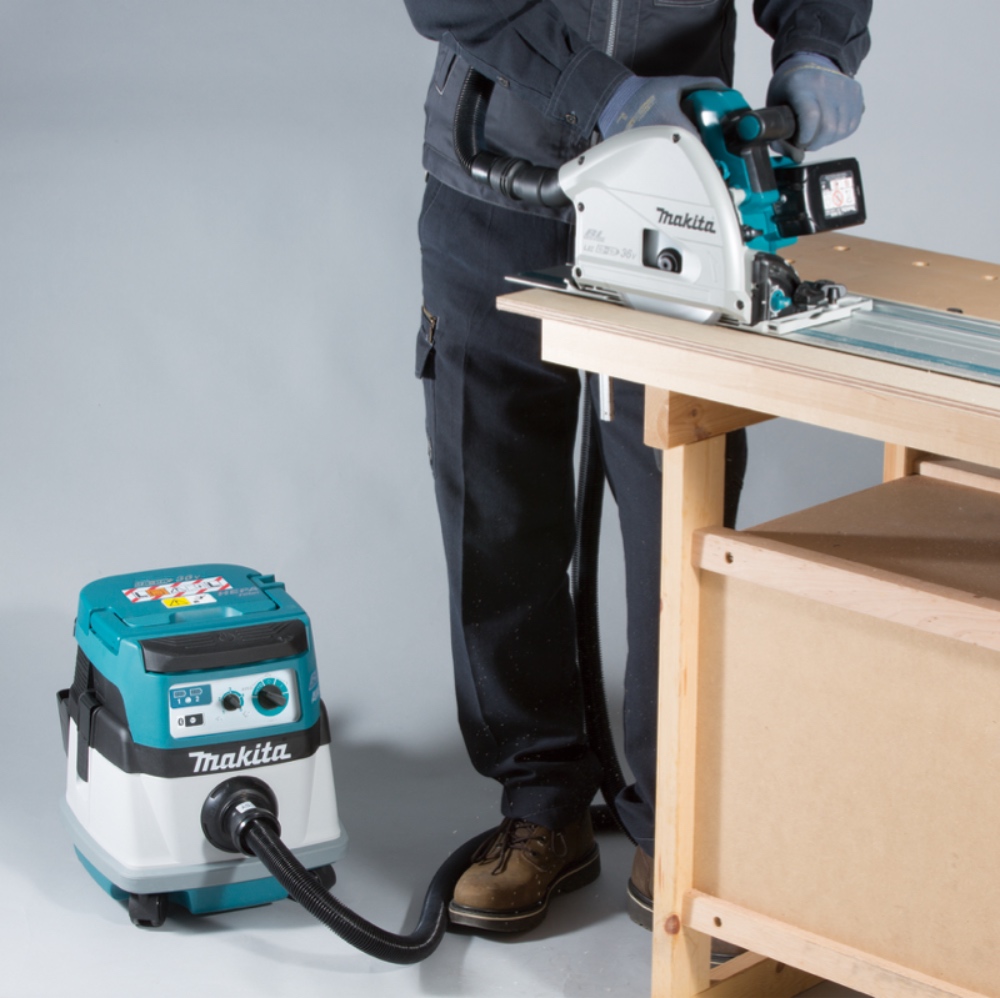

๐ Auto-start Wireless System (AWS) Connects to Vacuum Cleaner with Bluetooth ๐ Up to 80% faster cutting than corded model SP6000*¹ ๐ Automatic torque Drive Technology (ADT) adjusts cutting speed and torque during cut for optimum performance ๐Two 18V LXT Li-Ion batteries deliver the power and performance for corded demands without leaving the 18V LXT platform ๐ BL motor efficiently uses energy to match torque and RPM to the changing demands of the application ๐ Depth stopper for scuffing enables to easily cut a preliminary groove at a depth of 2 mm ๐ Variable speed dial control (2,500 - 6,300 RPM) for optimum ๐ Electric brake for improved productivity and increased operator safety.
*1 DSP601: EFFICUT blade (number of tips: 56, thickness of tip: 1.45 mm), SP6000: Plunge saw blade (number of tips: 48, thickness of tip: 2.2 mm) Any accessories shown are not necessarily supplied as standard equipment.
Material
Almi-num
Wood
MDF
FRP
Plastics
Technical specifications
| Blade Diameter | 165 mm (6-1/2") |
|---|---|
| Bevel Capacity | -1° - 48° |
| Max cutting capacity | 90° : 56 mm (2-3/16") |
| 45° : 40 mm (1-9/16") | |
| 48° : 38 mm (1-1/2") | |
| No Load Speed (RPM) | 2,500 - 6,300 |
| Sound Pressure Level | 92 dB (A) |
| Sound Power Level | 103 dB (A) |
| Vibration Level Cutting Wood(m/s² or less) | 2.5 m/s² or less |
| Dimensions (L x W x H) | 346 x 241 x 272 mm |
| Net weight | 4.4 - 5.1 kg (9.8-11.2 lbs.) |
| LXT (Lithium-ion Xtreme Technology) | ✓ |
| BL Motor | ✓ |
| ADT | ✓ |
| AWS (Auto-Start Wireless System) | ✓ |
| Electric brake | ✓ |
| Variable Speed | ✓ |
| Brake | ✓ |
| Soft Start | ✓ |
| Dust Collecting | ✓ |
| Carrying Case | ✓ |
