DHS781
190/185 mm (7-1/2 / 7-1/4")Magnesium Circular Saw AWS
18V X2 (36V) Magnesium Circular Saw (7-1/2 / 7-1/4")
Other Products

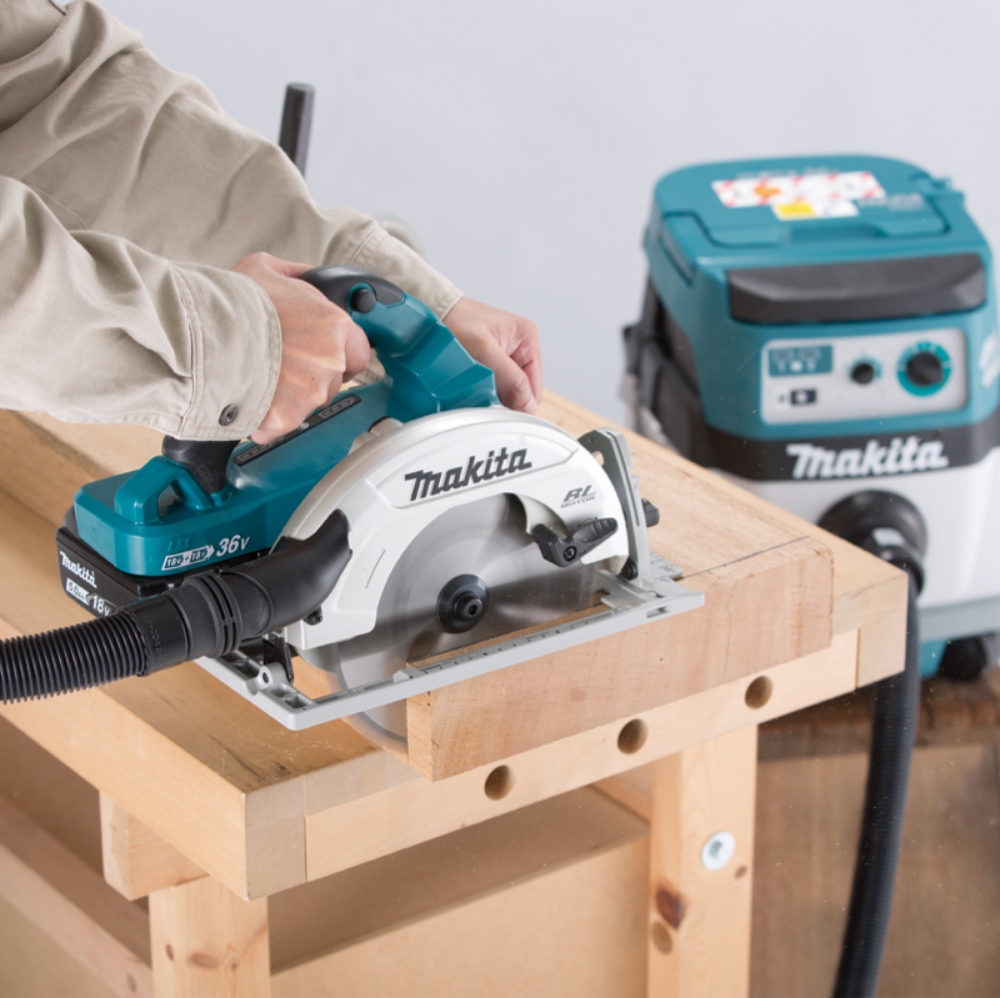

๐ Two 18V LXT Li-Ion batteries deliver the power and performance for corded demands without leaving the 18V LXT platform ๐ Auto-start Wireless System (AWS) connects to compatible vacuum cleaners with Bluetooth ๐ Automatic torque Drive Technology (ADT) adjusts cutting speed and torque during cut for optimum performance ๐ Electric brake for maximum productivity and increased operator safety ๐ Magnesium components create lightweight saws that are well-balanced and jobsite tough
Any accessories shown are not necessarily supplied as standard equipment.
Information & Technologies
Material
Wood
MDF
Technical specifications
| Blade Diameter | 190 / 185 mm (7-1/2 / 7-1/4") |
|---|---|
| Max cutting capacity | 90° : 68.5 / 66 mm (2-11/16 / 2-5/8") |
| 45° : 47.5 / 45.5 mm (1-7/8 / 1-13/16") | |
| 56° : 35.5 / 34mm (1-3/8 / 1-5/16") | |
| No Load Speed (RPM) | 6,000 |
| Vibration Level Cutting Wood | 2.5 m/s² |
| Sound Pressure Level | 93 dB (A) |
| Sound Power Level | 104 dB (A) |
| Dimensions (L x W x H) | 342 x 200 x 290 mm |
| Net weight | 4.2-4.8 kg (9.3-10.7 Ibs.) |
| LXT (Lithium-ion Xtreme Technology) | ✓ |
| BL Motor | ✓ |
| AWS (Auto-Start Wireless System) | ✓ |
| ADT | ✓ |
| Electric brake | ✓ |
| XPT | ✓ |
| Brake | ✓ |
| Soft Start | ✓ |
| Built-in Job Light | ✓ |
| Carrying Case | ✓ |
