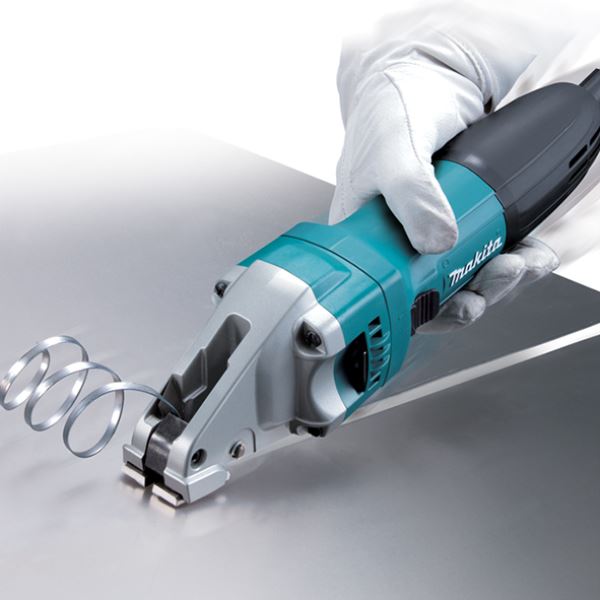

JS1601
1.6mm (16 Ga)
Straight Metal Shear
Ingenious aesthetic design provides more control and high maneuverability.
Any accessories shown are not necessarily supplied as standard equipment.
Technical specifications
| Continuous rating input | 380 W |
|---|---|
| Capacity: Steel up to 400 N/mm² | 1.6 mm |
| Capacity: Steel up to 600 N/mm² | 1.2 mm |
| Capacity: Steel up to 800 N/mm² | 0.8 mm |
| Capacity: Aluminum up to 200 N/mm² | 2.5 mm |
| Min. cutting radius | 250(9-7/8) mm(") |
| Strokes per minute (SPM) | 4,500 |
| Dimensions (L x W x H) | 320x70x78(12-5/8x2-3/4x3-1/16) mm(") |
| Net weight | 1.4(3.2) kg(lbs) |
| Double Insulation | ✓ |
| Carbon brush No. | 459 |
